Extreme Performance and Scalable Architecture for Mission-Critical and AI Workloads
The Brocade X8 Director delivers 128G Fibre Channel with ultra-low latency and very high port density. Its modular design, combined with UltraScale Inter-Chassis Links (ICLs), enables flat, high-performance, and highly scalable SAN fabrics optimized for enterprise and AI-driven workloads.
Five-Nines Availability Through Autonomous, Self-Healing Design
Designed with no single point of failure, hot-pluggable components, and nondisruptive software upgrades, the X8 Director provides proven five-nines availability. Embedded SAN AI enables congestion management, self-healing, and “set-and-forget” automation to maintain uptime beyond human reaction times.
Quantum-Safe, Cyber-Resilient Security by Design
The X8 Director is built on a quantum-safe security architecture featuring 256-bit encryption, hardened Fabric OS, hardware and software root of trust, Fibre Channel isolation, and a principle-of-least-privilege access model. Continuous monitoring and automated security assessments further strengthen the SAN security posture.
Lower Cost and Reduced Complexity with UltraScale ICLs
UltraScale Inter-Chassis Links reduce inter-switch cabling by up to 87.5%, increase usable device port density by up to 33%, and enable scalable core-edge or active-active mesh topologies without consuming front-facing ports.
| Fibre Channel ports | FC128-48: F_Port, E_Port, EX_Port, M_Port, SIM, and D_Port |
|---|---|
| Scalability | Full-fabric architecture of 239 switches |
| Certified maximum | 6000 active devices per switch; 56 switches, 19 hops in Brocade FOS fabrics; larger fabrics certified as required |
| ISL trunking | Frame-based trunking with up to eight 64Gb/s ports per ISL trunk; up to 256Gb/s per ISL trunk; exchange-based load balancing across ISLs with DPS included in Brocade FOS. |
| Maximum frame size | 2112-byte payload |
| Frame buffers | 40,000 per switching ASIC |
| Classes of service | Class 2, Class 3, Class F (interswitch frames) |
| Data traffic types | Fabric switches supporting unicast |
| Media types | Brocade FC128-48 Port Blade: • 128G FC SFP+ LC connector: SWL • 64G FC SFP+ LC connector: SWL, LWL, ELWL Inter-Chassis Link (ICL) Blades, Brocade ICLX8-8 and ICLX8-4: • Gen 8 FC OSFP MMF, OSFP connector: SWL 100m • Gen 8 FC OSFP SMF, LCx2 connector: LWL 2 km Refer to the Brocade High-Density Cabling Design Guide for a list of qualified cable vendors. All Brocade transceivers are PC/UPC compatible. |
| USB | One USB port per control processor for firmware download, SupportSave, and configuration upload or download |
| Fabric services | BB Credit Recovery; Brocade Advanced Zoning (Default Zoning, Port/WWN Zoning, Peer Zoning); Congestion Signaling; Dynamic Path Selection (DPS); Extended Fabrics; Fabric Performance Impact Notification (FPIN); Fabric Vision; FDMI; FICON CUP; Flow Vision; F_Port Trunking; FSPF; Integrated Routing; ISL Trunking; Management Server; Name Server; NPIV; NTP v3; Port Decommission/Fencing; QoS; Registered State Change Notification (RSCN); Target-Driven Zoning; Traffic Optimizer; Virtual Fabrics (Logical Switch, Logical Fabric); SAN Fabric Intelligence; VMID+ and AppServer |
| Extension | Supports DWDM, CWDM, and FC-SONET Devices; Fibre Channel; In-flight Compression (Brocade LZO) and Encryption (AES-GCM-256); BB Credit Recovery. |

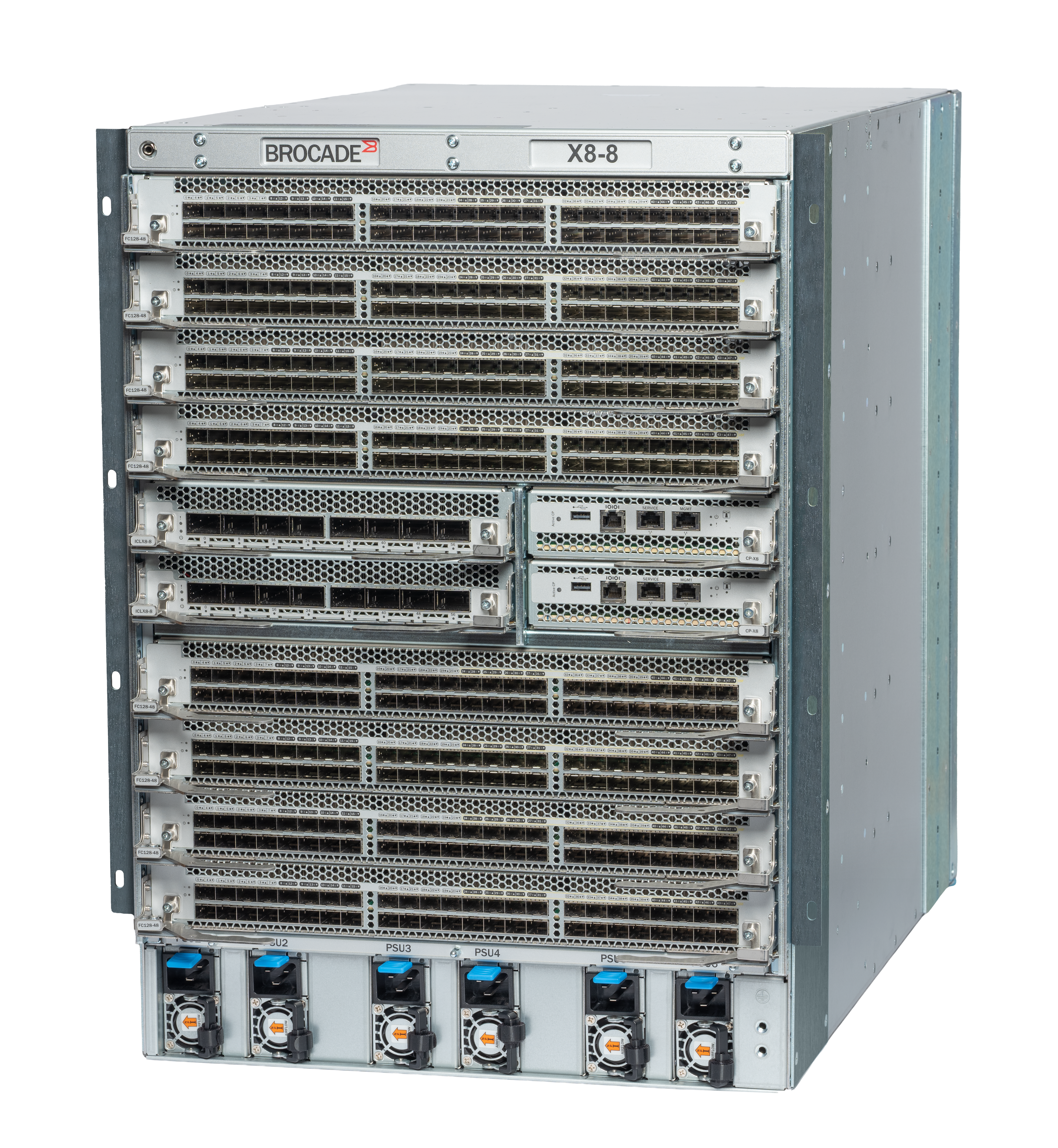

| Chassis | Single Chassis: • Brocade X8-8: Nonblocking architecture X8-8 Director with 8 128G 48-port blades: 62Tb/s of aggregate chassis bandwidth (384 device ports with a 128G data rate plus 16 UltraScale ICL ports with 8 x Gen 8) • Brocade X8-4: Nonblocking architecture X8-4 Director with 4 128G 48-port blades: 31Tb/s of aggregate chassis bandwidth (192 device ports with a 128G data rate plus 8 UltraScale ICL ports with 8 x Gen 8) Each provides support for (E, F, D, M, SIM, and EX) Fibre Channel ports using Fibre Channel blades. |
| Control processor | Redundant (active/standby) control processor blades Brocade FC128-48 port blade provides 48 ports of 128/64/32/16G Fibre Channel and up to 24 ports of 100/50/25/10GbE IP connectivity |
| Ethernet ports | Brocade FC128-48 Port Blade: • Fibre Channel: 112.2Gb/s line speed, full duplex; 57.8Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; autosensing o128, 64, 32, and 16G port speeds depending on SFPs used. • AnyIO Ports: 24 AnyIO ports can be configured as Fibre Channel or IP. Supports 128, 64, 32 and 16G Fibre Channel or 100, 50, 25, and 10GbE IP speeds. The 128G SWL SFP+ supports 100, 50, 25, and 10GbE speeds. The 64G SWL SFP+ transceiver supports 25GbE and 10GbE speeds. |
| UltraScale ICL trunking | Dedicated chassis-to-chassis linkage through connectors on the inter-chassis link (ICL) blades, forming trunks from up to four color-coded OSFP ports between two Brocade ICLX8-4 chassis and up to eight color-coded OSFP ports between Brocade ICLX8-8 chassis |
| Multichassis with UltraScale ICL ports | Up to 4608 Fibre Channel ports; UltraScale ICL ports (16 for 8-slot or 8 per 4-slot chassis, optical OSFP) connect up to 9 chassis in a full-mesh topology or up to 12 chassis in a core-edge topology. |
| Chassis bandwidth | X8-8 Director with 8 128G 48-port blades: 62Tb/s of aggregate chassis bandwidth (384 device ports with a 128G data rate plus 16 UltraScale ICL ports with 8 x Gen 8) X8-4 Director with 4 128G 48-port blades: 31Tb/s of aggregate chassis bandwidth (192 device ports with a 128G data rate plus 8 UltraScale ICL ports with 8 x Gen 8) |
| Slot bandwidth | 6144Gb/s providing line-rate performance for the Brocade FC128-48 blade |
| Service Weblink | http://www.fujitsu.com/global/services |
| Support Pack Options | Available in major metropolitan areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
| Recommended Service | 24x7, Onsite Response Time: 4h |
