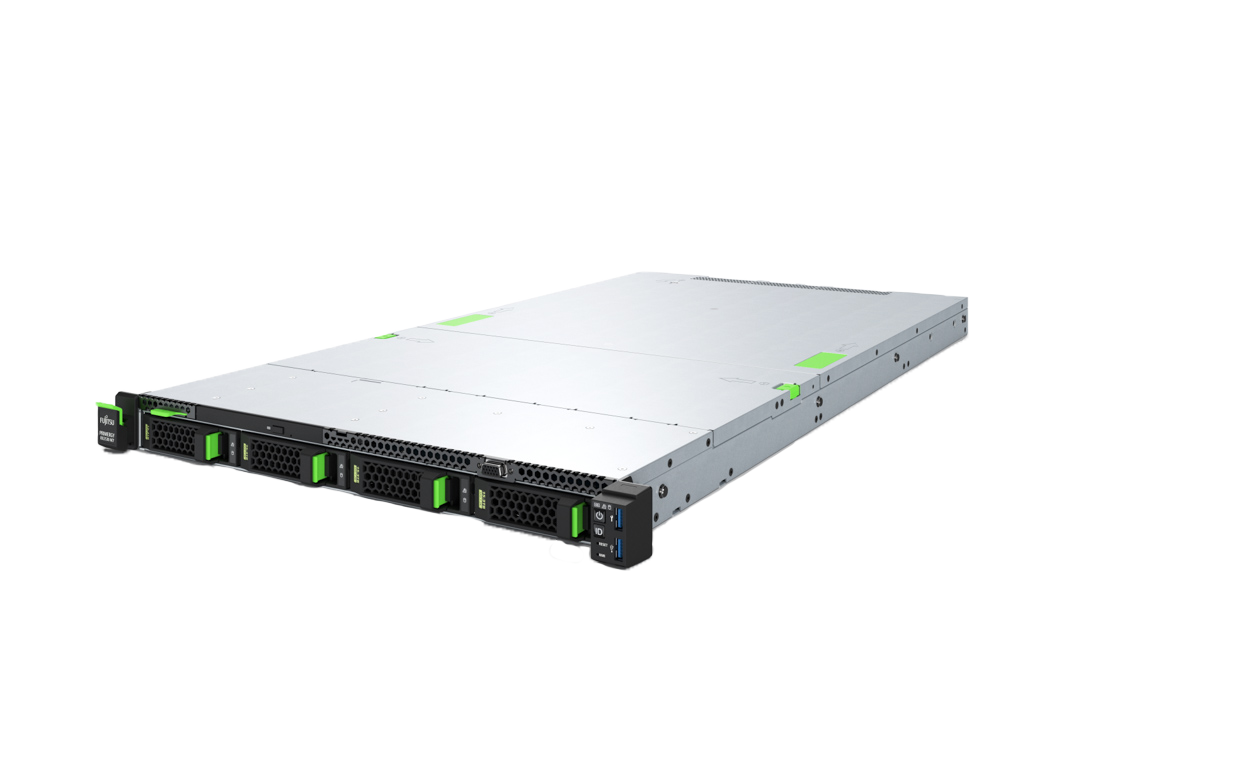

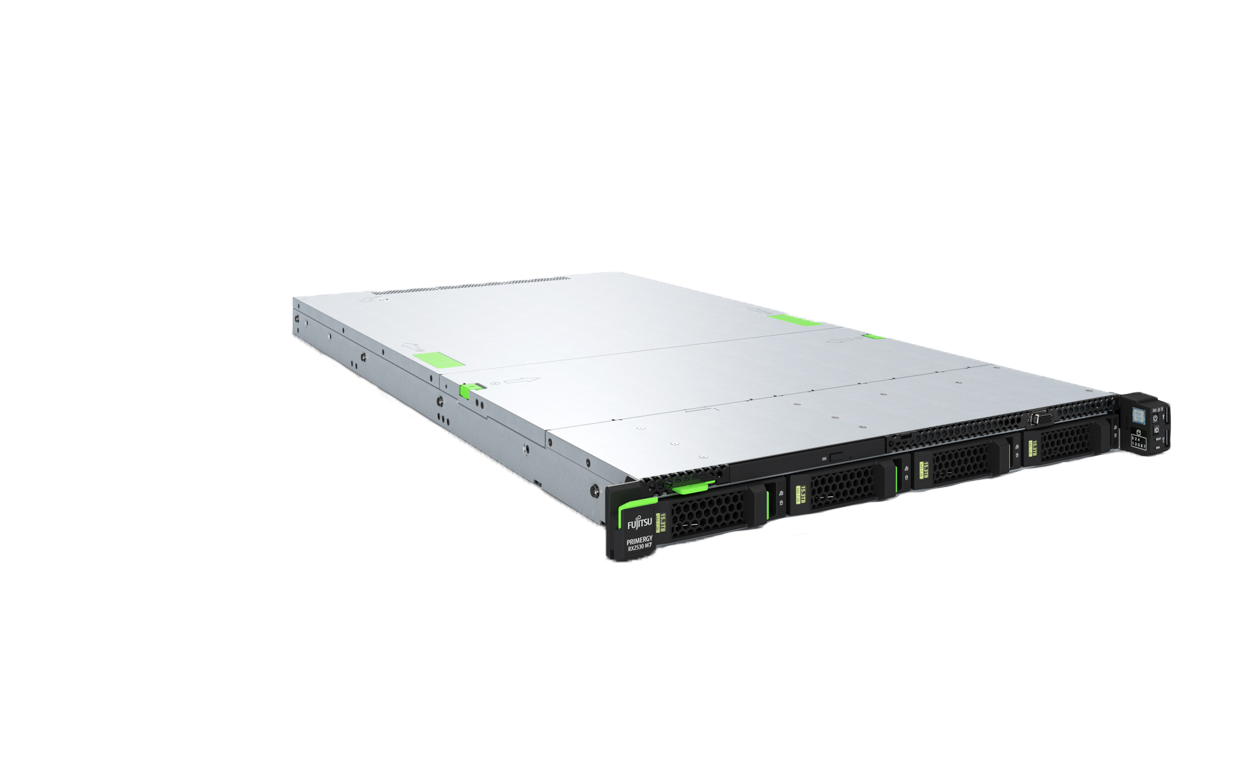

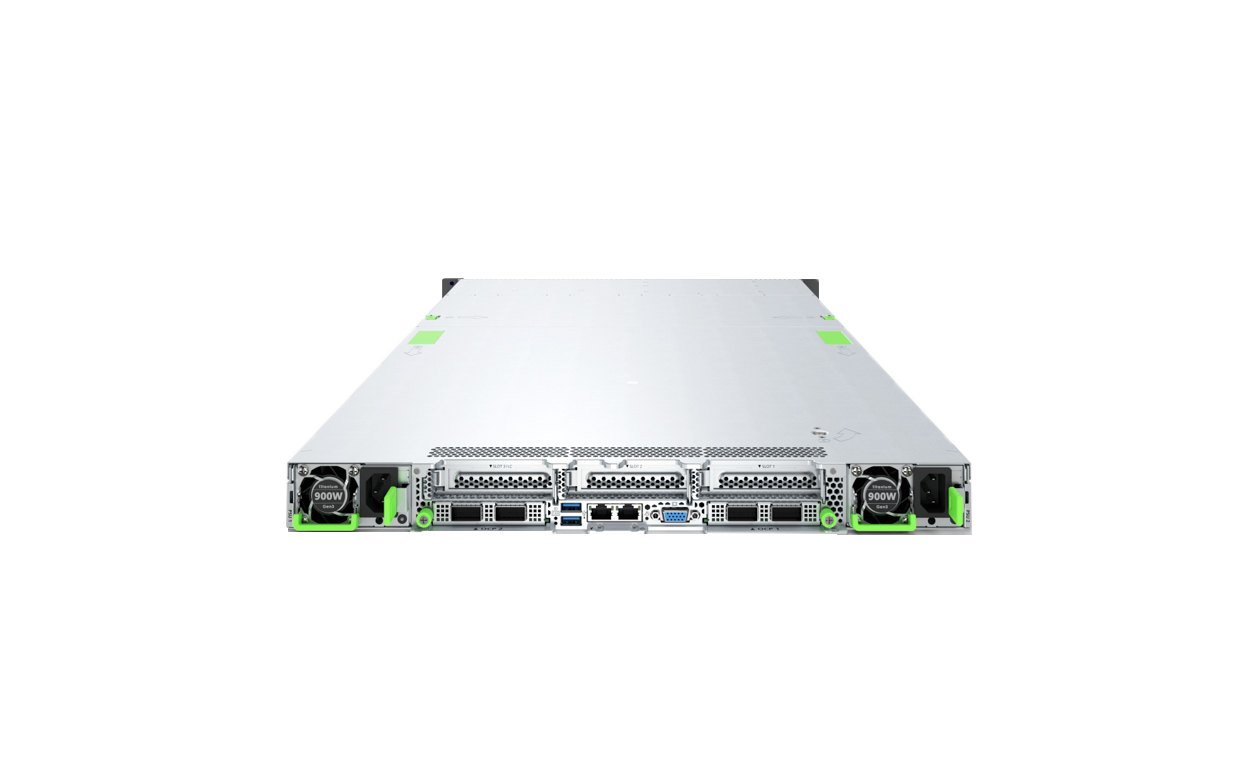

OPTIMIZED PERFORMANCE AND DENSITY
Ideal dual-socket platform for dense scale-out data center computing powered by latest 4th or 5th Generation Intel® Xeon® Scalable Processors with up to 60 / 64 cores per CPU.
POWER YOUR APPLICATIONS
Combine performance and versatility to adapt to a variety of applications and meet future demands with 32 DIMM modules and up to 8TB of memory. DDR5 DIMM memory provides fast, high capacity for memory intensive workloads.
EASY EXPANDABILITY
Benefit from the flexibility of 2.5”, 3.5” storage devices for highest capacities with up to 10 drives per height unit (U) and additional expandability with up to 3 PCIe 5.0 /1x PCIe 4.0 (for Internal RAID controller) slots flexible adapters via OCP v3.
COMPREHENSIVE PROTECTION
Benefit from advanced security technologies such as Platform Firmware Resilience (PFR) to protect the most sensitive portions of a workload, encryption support to enhance data and VM protection as well as physical protection to avoid unauthorized access.
| Chipset | Intel® C741 |
|---|---|
| Mainboard Type | D3982 |
| Product Type | Dual Socket Rack Server |
| Processor | Intel® Xeon® Bronze 3xxx processor, Intel® Xeon® Silver 4xxx processor, Intel® Xeon® Gold 5xxx processor, Intel® Xeon® Gold 6xxx processor, Intel® Xeon® Platinum 8xxx processor |
| Memory | 16 GB - 8 TB, DIMM (DDR5) |
| Memory slots | 32 (16 DIMMs per CPU, 8 channels with 2 slots per channel) |
| Memory Protection | ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device Correction), Memory Mirroring support |
| Drives (optional) | DVD supermulti, ultraslim, SATA I |
| PCI-Express 4.0 x16 | 1 x Low profile |
| Accessible Drive Bays | 1 x 5.25/9.5mm for DVD-RW/Blu-ray |
| Optional Accessible Drives | 2x 2.5-inch hot-plug SAS/SATA rear option Ultra slim 9.5mm optical drive (optional) n/a Not for 10x 2.5-inch base unit. All possible options described in relevant system configurator. |
| Storage Drive Bays | up to 4 x 3.5-inch, 8 x 2.5-inch, 10 x 2.5-inch base unit up to 8x 2.5" (SFF) hot plug drives (SAS/SATA) up to 4x 3.5" (LFF) hot plug drives (SAS/SATA) up to 10x 2.5" (SFF) hot plug drives (SAS/SATA) up to 10x 2.5" (SFF) hot plug drives (SAS/SATA/PCIe SSD) up to 10x 2.5" (SFF) hot plug drives (SATA/PCIe SSD) |
| LAN Controller | 1 x 1 Gbit/s onboard, Dynamic LoM via OCP slot; OCPv3 compliant, Optional OCP adapters:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 4 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+, 2 x 25 Gbit/s SFP28, 4 x 25 Gbit/s SFP28, 2x 100 Gbit/s QSFP28 |
| Remote Management | Integrated Remote Management Controller (iRMC S6, 1024 MB attached memory incl. graphics controller), IPMI 2.0 compatible |
| USB ports | 4 x USB 3.0 (2x front, 2x rear) |
| Graphics | 2 x VGA (thereof 1x front optional - not for base unit with 10x 2.5” devices) |
| Management LAN (RJ-45) | 1 x dedicated management LAN port for iRMC S6 (10/100/1000 Mbit/s) |
| Trusted Platform Module (TPM) | Infineon / TPM 2.0 module, FIPS; TCG compliant (option) |
| Power Supply Configuration | 1 x hot-plug power supply or 2 x hot-plug power supply for redundancy |
| Active Power (max. configuration) | 2,608 W |
| Weight | Std: max. 19.2 kg / Short depth: max. 16.6 kg |
| Rack (W x D x H) | 483 mm (Bezel) / 435 mm (Body) x 808 x 43 mm |
| Mounting Depth Rack | Std: 836.95 mm / Short depth: 756.95 mm |
| DC Infrastructure Management | Infrastructure Manager (ISM) Essential Edition Advanced Edition |
| Server Management | ServerView Agentless Service (SVAS), ServerView ESXi CIM Provider, ServerView Installation Manager (SVIM), ServerView Update Manager Express (UME) |
| Operating system | http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473 |
| Manufacturer warranty period | 3 years |
| Manufacturer warranty type | Onsite warranty |
| Service Lifecycle | at least 5 years after shipment, for details see https://support.ts.fujitsu.com/ |
| Service Weblink | http://www.fujitsu.com/emeia/products/product-support-services/ |
| Support Pack Options | Globally available in major metropolitan areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
| Recommended Service | 24x7 Onsite Service with 4h Onsite Response Time |
